Voigtlander 35mm f2 VM ASPH ULTRON VintageLine TypeII Black

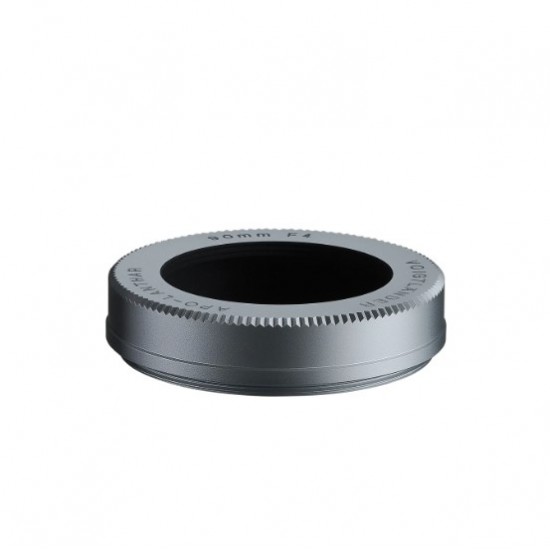

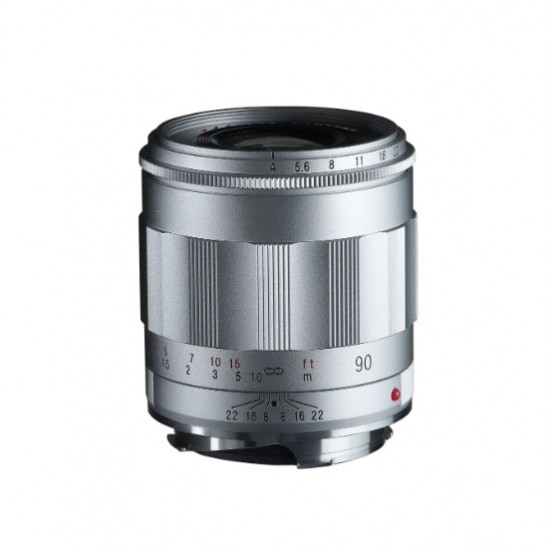

The Voigtlander APO-LANTHAR 90mm F4 Close Focus VM is an extremely high-performance manual-focus medium telephoto lens optimized for full-frame M-mount sensors. Through its apochromatic design, it thoroughly suppresses various types of aberrations, including axial chromatic aberration, while also pursuing ultimate performance in terms of resolution and contrast reproduction.

While maintaining the traditional F4 aperture used in 90mm lenses for rangefinder cameras, the lens achieves uncompromising optical performance by incorporating anomalous partial dispersion glass in six of its eight elements across seven groups. Total length from the mount surface is just 54.8mm—about the same as the short side of a credit card. Weighing just 235g, the lens is lightweight, offering excellent portability while eliminating vignetting in the shooting frame when using an optical rangefinder.

Main Features:

• Apochromatic design that eliminates chromatic aberration
• Optical design optimized for digital image sensors
• Compact design with a total length of 54.8 mm
• All-metal barrel for high rigidity and durability
• Manual focus for precise focusing
• High-precision rangefinder coupling mechanism
• Minimum focusing distance: 0.5 m by live view
• Minimum rangefinder focusing distance: 0.7 m
• Click stop at the minimum rangefinder coupling point

The new Voigtlander 28mm APO-LANTHAR VM mount is Voigtländer’s best performing VM 28mm wide angle lens ever, continuing the high performance standard of the VM 50mm f2 APO-LANTHAR, VM 35mm f2 APO-LANHTAR lenses. The lens design includes apochromatic colour correction, floating lens elements for better close focusing performance, two double sided aspherical elements, five abnormal partial dispersion elements and superior multi-coating for outstanding flare control.

Main Features

• Apochromatic design eliminates chromatic aberration
• Optimised optical design for digital image sensors
• All-metal lens barrel for high rigidity and durability
• Manual focus for precise focusing
• Floating mechanism
• Minimum focusing distance 0.5 m
• Bayonet VM mount
• High-precision rangefinder linkage mechanism
• Full-frame image circle

High speed wide lens
S.C. = single coated

Focal Length: 40 mm
Aperture Ratio: 1:1,4
Minimum Aperture: F 16
Lens Construction: 7 elements in 6 groups
Angle of View: 56?
Aperture Blades: 10
Minimum Focus: 0,7 m
Maximum Diameter: 55 mm
Length: 29,7 mm
Mount: M-Bajonett (VM)
Weight: 175 g
Filter Size: 43 mm
Color: black
Others: rangefinder can be combined
Optional: Lenshood LH-6

The NEW Voigtlander APO-Lanthar 50mm f/2 Aspherical lens for Leica M-Mount cameras is based on the Sony E-Mount version released last year (2020), and has been optimised for full-frame M-mount sensors. Voigtlander only gives the APO-Lanthar title to high-performance products, those with ?outstanding imaging performance?.

Optically the lens is constructed of 10 elements in eight groups, with two abnormally dispersed glass elements and two double-sided aspherical lenses along with a floating mechanism. This produces perfectly circular bokeh wide open and also closed down as far as f/5.6 thanks to its 12-bladed diaphragm. The apochromat design produces the ?ultimate performance? in regards resolution and contrast.

The new redesigned compact Ultron Vintage Line 28mm F2.0 Aspherical VM Type II features improved aspherical optical performance utilising10 lens elements in 7 groups. The new lens is sharper, smaller, lighter and available in three classic lens style.

Type II lenses have a 1970?s Black Paint or Chrome Plating style on an all brass lens barrel with a fast focusing comfortable classic style focusing tab.

The lens accepts the optional aluminium LH-4N and LH-12 lens hoods. Sold separately

This upgraded version, with respect to the phenomenon caused by spherical aberrations where the focus position shifts when stopping the aperture down to capture an image after focusing with live view at maximum aperture, this shift in the image plane caused by changing the aperture is now almost entirely eliminated.

Focal Length 35mm
Aperture Range f1.4 - f16
Elements / Groups 8 / 6
Angle of View 63?
Focusing Range 0.7m - 8
Lens Coverage Full Frame / 35mm
Lens Focus Mechanis Manual
Thread Size 43mm
Compatible Lens Hood LH-6
Dimensions 55 x 28.5mm
Weight 189gm

The brand new 50mm f1.0 Nokton Aspherical VM Lens is Voigtlander's fastest VM lens. It promises exceptional optical performance due to the newly designed GA (Ground Aspherical) lens element.
The NEW Voigtlander 50mm f1.0 Nokton Aspherical VM lens uses the very latest GA (ground aspherical) lens element manufacturing technique, producing the fastest and sharpest f1.0 lens in the entire Voigtlander full-frame interchangeable lens line up. At only 55mm in length, this lens is relatively compact

GA (ground aspherical) lens
A sharp and unique style
Beautiful bokeh with 12 diaphragm blades

Classic pancake wide-angle lens.

Focal Length: 35 mm
Aperture Ratio: 1:2,5
Minimum Aperture: F 22
Lens Construction: 7 elements in 5 groups
Angle of View: 63?
Aperture Blades: 10
Minimum Focus: 0,7 m
Maximum Diameter: 55 mm
Length: 23 mm
Mount: M-Bajonett (VM)
Weight: 134 g
Filter Size: 39 mm
Color: black
Others: rangefinder can be combined
Optional: Lenshood LH-4N

The Voigtlander COLOR-SKOPAR 28mm F2.8 Aspherical VM is a high-performance wide-angle lens focused on light handling for rangefinder cameras. The latest optical design and aspherical lens elements maintain the same optical performance as our Voigtländer ULTRON Vintage Line 28mm F2 Aspherical VM, while keeping the maximum aperture at F2.8 to achieve extreme portability.

Type I has a nostalgic appearance thanks to the use of a rotating helicoid system, and a brass lens exterior. It is available in black paint and silver finishes.

All models have extremely compact exteriors, and the lenses combine the mobility of a rangefinder camera with the beautiful design of a snap-shooter. The optical system consists of 8 elements in 5 groups, including one double-sided aspheric lens. The lens has been optimized for use with rangefinder-linked digital and film cameras.

The Apo-Skopar 90mm F2.8 VM is a manual focus medium focal length telephoto lens optimised for full frame M mount sensors. The newly designed optical system uses Abnormal Partial Dispersion glass for 5 out of 7 elements in 7 groups to make your images rich, three dimensional in character and super sharp!

In addition to high image quality, the apochromatic design makes axial chromatic aberration as close to zero as possible. This lens is also very light, at only 250g. The 90mm is only 60mm in length & due to its small stature, it does not protrude into the viewfinder frame when used on a rangefinder camera.

The Voigtlander 50mm f3.5 APO-LANTHAR Type II is an extremely high performance manual focus standard lens optimized for full frame VM mount cameras. The apochromatic design thoroughly eliminates chromatic aberration on axis and other aberrations, while pursuing ultimate performance in terms of resolution and contrast reproduction. While adopting a maximum aperture of F3.5, the lens is composed of eight elements in six groups, four of which are made of anomalous partial dispersion glass to achieve uncompromising optical performance.

The lens combines ultimate optical performance with easy handling and classic vintage rangefinder lens styling. As a tribute to classic rangefinder lenses that appeared in the mid 20th century, the more expensive vintage style straight slot screw heads were chosen instead of less expensive modern Phillips head.

Equipped with a high precision rangefinder controlled mechanism, and the silky feel of the all metal helicoid allowing the photographer to experience the true joy of focusing using a traditional rangefinder. The minimum focusing distance of the Type II is 0.35m by adopting a helicoid with a lens rotation angle of 300 degrees, which is rangefinder coupled as close as 0.7m (depending upon camera capability).

A mechanism is provided to recognize the junction point of the rangefinder linked range by a clicking sensation during focusing operation. The Type II filter size is φ39mm, a popular filter size for rangefinder cameras. Two versions of Type II are available: a silver version with a heavy feel using brass materials (body weight: 250 g) and a black painted model with a lighter weight by using aluminium materials in some parts (body weight: 175 g). The silver model has a metal hood in the same color as the main body and a black metal cap with a pear finish, while the black model has a black paint in the same color as the lens body.

The Voigtlander 50mm f3.5 APO-LANTHAR Type I is an extremely high performance manual focus standard lens optimized for full frame VM mount cameras. The apochromatic design thoroughly eliminates chromatic aberration on axis and other aberrations, while pursuing ultimate performance in terms of resolution and contrast reproduction. While adopting a maximum aperture of F3.5, the lens is composed of eight elements in six groups, four of which are made of anomalous partial dispersion glass to achieve uncompromising optical performance.

The lens combines ultimate optical performance with easy handling and classic vintage rangefinder lens styling. As a tribute to classic rangefinder lenses that appeared in the mid 20th century, the more expensive vintage style straight slot screw heads were chosen instead of less expensive modern Phillips head.

Equipped with a high precision rangefinder linked mechanism, and the silky feel of the all metal helicoid allowing the photographer to experience the true joy of focusing using a traditional rangefinder. The minimum focusing distance of the Type I is 0.45m. The rangefinder close focus is 0.7m (depending upon camera capability), which is linked to the rangefinder. A mechanism is provided to recognize the junction point of the rangefinder linked range by a clicking sensation during focusing operation.

The filter diameter is a retro inspired φ34mm. Two versions of Type I are available: a two tone black paint and chrome model with a heavy feel using brass materials (body weight: 245g) and a lightweight model with a matte black paint and aluminium construction (body weight: 150g). Each version includes a metal hood and a metal cap with the same finish as the lens body.

The NOKTON Vintage Line 28mm F1.5 Aspherical is a wide-angle lens that combines three elements: a

large aperture, compact dimensions, and outstanding optical performance. The lens is F1.5, very fast for a

28mm wide-angle lens, with compact 43mm filter diameter and 45.5mm length for portability.

The classically designed lens barrel is equipped with an 8-group, 10-element optical system featuring two

aspherical lens elements on both sides. This delivers outstanding optical performance even at an aperture of

f/1.5.

The minimum focusing distance is 0.5m by the use of a helicoid that can be moved out further from the 0.7m

distance (depending on the camera) linked to the rangefinder.

Two different styles will be offered: The Type I is made of aluminum and weighs 250g. The Type II is made of

brass and has a tactile quality due to its hefty weight of 330g. The Type I styling is reminiscent of modern

classic lenses of the 1970s in matte black paint or silver, while the Type II, reminds us of the famous lenses

of the 1960s and is available in both black paint and silver finishes. The optional lens hood with slits, LH-6

fits both Type I and Type II styles.

In addition to this, the Type II includes a focusing knob that offers a new manual focusing experience. The

accessory knob can be exchanged on the focusing lever by unscrewing the screw in the finger recess and

reattaching with new knob. The focusing knob is metal and focuses the lens at approximately 1 meter from

the lens mount when turned to the 6 o'clock position, allowing the user to zone focus by the angle of the

knob.

The optical design of this lens is optimized for use with rangefinder-coupled digital and film cameras. It also

may be used on mirrorless cameras through the use of a mount adapter, making it suitable for use on a

variety of platforms beyond rangefinder cameras.

The NOKTON Vintage Line 35mm F1.5 Aspherical is a regular use lens for rangefinder cameras with a large aperture. Still, the filter diameter is kept to φ39mm and the overall length of the product is short at 36mm, giving it a tight, compact portability.

The lens barrel, with a modern classic design, is equipped with a 6-group, 9-element optical system featuring two double-sided aspheric lenses, which provide excellent optical performance at all apertures.

The minimum focusing distance is 0.5m, shorter than the 0.7m linked to the rangefinder (depending on the camera to which it is attached).

Two styles are available: First, there is Type I, made of aluminum and weighing 188g having both light weight and maximum portability. Also offered is Type II, made of brass and weighing 284g for a sturdy and substantial feeling, with a finish choice of either black or silver.

The optional hoods LH-4N with slits and LH-12 classic style are both compatible.

The Voigtlander 50mm f3.5 APO-LANTHAR Type II is an extremely high performance manual focus standard lens optimized for full frame VM mount cameras. The apochromatic design thoroughly eliminates chromatic aberration on axis and other aberrations, while pursuing ultimate performance in terms of resolution and contrast reproduction. While adopting a maximum aperture of F3.5, the lens is composed of eight elements in six groups, four of which are made of anomalous partial dispersion glass to achieve uncompromising optical performance.

The lens combines ultimate optical performance with easy handling and classic vintage rangefinder lens styling. As a tribute to classic rangefinder lenses that appeared in the mid 20th century, the more expensive vintage style straight slot screw heads were chosen instead of less expensive modern Phillips head.

Equipped with a high precision rangefinder controlled mechanism, and the silky feel of the all metal helicoid allowing the photographer to experience the true joy of focusing using a traditional rangefinder. The minimum focusing distance of the Type II is 0.35m by adopting a helicoid with a lens rotation angle of 300 degrees, which is rangefinder coupled as close as 0.7m (depending upon camera capability).

A mechanism is provided to recognize the junction point of the rangefinder linked range by a clicking sensation during focusing operation. The Type II filter size is φ39mm, a popular filter size for rangefinder cameras. Two versions of Type II are available: a silver version with a heavy feel using brass materials (body weight: 250 g) and a black painted model with a lighter weight by using aluminium materials in some parts (body weight: 175 g). The silver model has a metal hood in the same color as the main body and a black metal cap with a pear finish, while the black model has a black paint in the same color as the lens body.

Classic styled 50mm lens matching the leica rangefinder style.

Focal Length: 50 mm
Aperture Ratio: 1:3,5
Minimum Aperture: F22
Klick Stop: ---
Lens Construction: 5 elements in 3 groups
Angle of View: 46?
Aperture Blades: 10
Minimum Focus: 0,7 m
Maximum Diameter: 52 mm
Length: 43,2 mm
Mount: M-bayonet (VM)
Weight: 187 g
Filter Size: 27 mm
Color: black/silver
Others11screw-in-type lans hood, clickless aperture. rotating front element
Optional11---
